Motion Control Products

SilverMax™ 23 Frame X-Series Integrated Servo

The SilverMax X-Series is a fully integrated Hybrid Servo Motor with feedback, a Controller/Indexer, and a Digital Driver in a compact package. All communications and power are accessed through a single 19 pin M16 connector. The interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog. A processor back-up power input and a hardware drive enable are also included. Communication via CANopen and RS-485 serial, which may be operated simultaneously. The driver is rated to 6A continuous per phase. The system is designed for use at +12.5VDC to +48VDC.

SilverMax QCI-X23C-1

Starting at $779.00

QCI-X23C-1 Features

  • Continuous Torque: 75 oz-in (0.53 Nm)
  • Peak Torque: 88 oz-in (0.62 Nm)
  • Maximum Current: 4.0 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

SilverMax QCI-X23C-3

Starting at $858.00

QCI-X23C-3 Features

  • Continuous Torque: 170 oz-in (1.2 Nm)
  • Peak Torque: 205 oz-in (1.45 Nm)
  • Maximum Current: 4.0 A
  • Maximum Speed: 3500 RPM
  • Encoder Resolution: 8000 counts/Rev

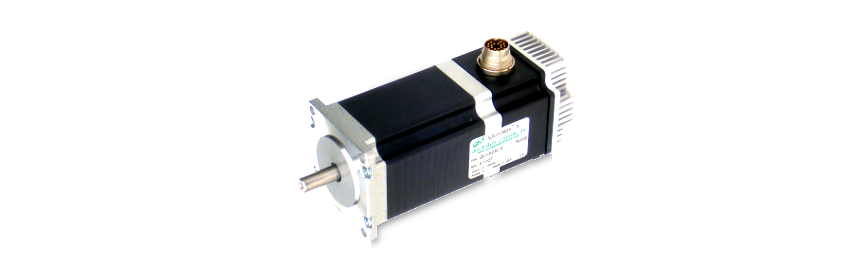

SilverMax QCI-X23C-6

Starting at $935.00

QCI-X23C-6 Features

  • Continuous Torque: 300 oz-in (2.11 Nm)
  • Peak Torque: 300 oz-in (2.11 Nm)
  • Maximum Current: 3.5 A
  • Maximum Speed: 2500 RPM
  • Encoder Resolution: 8000 counts/Rev

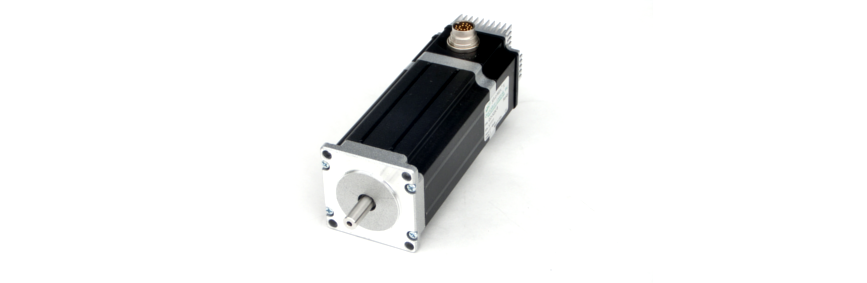

SilverMax QCI-X23C-8

Starting at $1012.00

QCI-X23C-8 Features

  • Continuous Torque: 380 oz-in (2.68 Nm)
  • Peak Torque: 500 oz-in (3.53 Nm)
  • Maximum Current: 4.0 A
  • Maximum Speed: 1000 RPM
  • Encoder Resolution: 8000 counts/Rev
  • Power
  • Input Voltage: +12.5VDC to +48VDC, regulated
  • Input Current: 5.5A Max
  • Communications
  • RS-485 multi-drop
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen®
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • All inputs have a light pull-up (~100k ohm to 3.3v)
  • All 7 I/O have an optional programmable pull-up/pull-down of 2.2 k ohm
  • All 7 I/O may be used as Analog Inputs: 0 to +3.3 VDC input signal range
  • IO7 has a secondary circuit to handle 0 to +10v input signal range
  • Hardware Drive Enable
  • Processor Power Backup
  • Single Cable: M16-19 connector

SilverMax™ 23 Frame XT-Series Integrated Servo

The SilverMax XT-Series is QuickSilver Controls' lower-cost fully integrated Hybrid Servo Motor with feedback, a Controller/Indexer, and a Digital Driver in a compact package. All communications, I/O, and power are accessed through pluggable screw terminal blocks. The I/O interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog input. A hardware drive enable input is standard and a drive enable source is also included. Communication via CANopen and RS-485 serial, which may be operated simultaneously. The driver is rated to 6A continuous per phase. The system is designed for use at +12.5 to +48 VDC. Connectors are included.

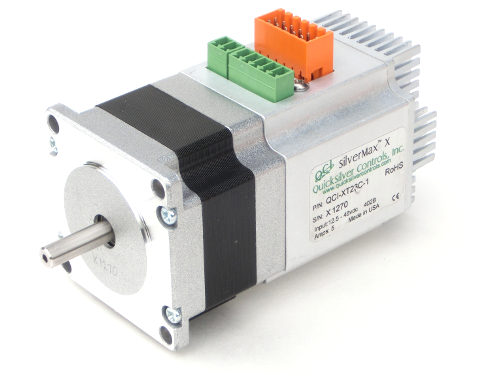

SilverMax QCI-XT23C-1

Starting at $739.50

QCI-XT23C-1 Features

  • Continuous Torque: 75 oz-in (0.53 Nm)
  • Peak Torque: 88 oz-in (0.62 Nm)
  • Maximum Current: 4.0 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

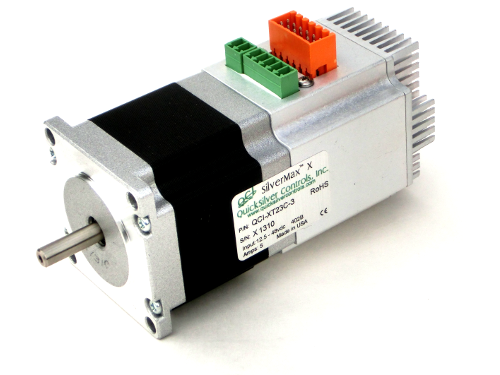

SilverMax QCI-XT23C-3

Starting at $819.00

QCI-XT23C-3 Features

  • Continuous Torque: 170 oz-in (1.2 Nm)
  • Peak Torque: 205 oz-in (1.45 Nm)
  • Maximum Current: 4.0 A
  • Maximum Speed: 3500 RPM
  • Encoder Resolution: 8000 counts/Rev

SilverMax QCI-XT23C-6

Starting at $895.00

QCI-XT23C-6 Features

  • Continuous Torque: 300 oz-in (2.11 Nm)
  • Peak Torque: 300 oz-in (2.11 Nm)
  • Maximum Current: 3.5 A
  • Maximum Speed: 2500 RPM
  • Encoder Resolution: 8000 counts/Rev

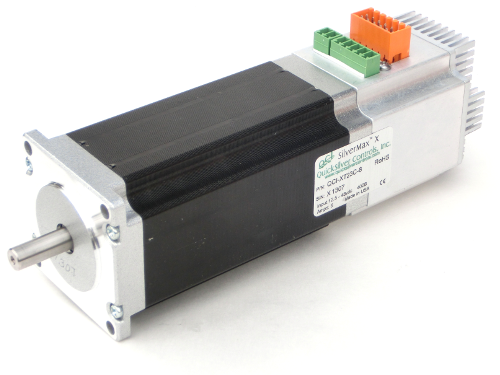

SilverMax QCI-XT23C-8

Starting at $969.00

QCI-XT23C-8 Features

  • Continuous Torque: 380 oz-in (2.68 Nm)
  • Peak Torque: 500 oz-in (3.53 Nm)
  • Maximum Current: 4.0 A
  • Maximum Speed: 1000 RPM
  • Encoder Resolution: 8000 counts/Rev
  • Power
  • Input Voltage: +12.5VDC to +48VDC, regulated
  • Input Current: 5.5A Max
  • Communications
  • RS-485 multi-drop
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen®
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • All inputs have a light pull-up (~100k ohm to 3.3v)
  • All 7 I/O have an optional programmable pull-up/pull-down of 2.2 k ohm
  • All 7 I/O may be used as Analog Inputs: 0 to +3.3 VDC input signal range
  • IO7 has a secondary circuit to handle 0 to +10v input signal range
  • Hardware Drive Enable
  • Power, Comm., and I/O accessible via pluggable terminal blocks

SilverMax™ 34 Frame X-Series Integrated Servo

The SilverMax™ is a fully integrated Hybrid Servo Motor with feedback, a Controller/Indexer, and a Digital Driver in a compact package. All communications and IO are accessed through a single 19 pin M16 connector. Power and external Clamp resistor are available through a 6 pin M23 connector. The interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog input. A processor back-up power input and a hardware drive enable are also included. Communication via CANopen and RS-485 serial, which may be operated simultaneously. The driver is rated to 20A continuous per phase. The system is designed for use at +12 to +72 VDC for driver power and 12-48v for processor power.

SilverMax QCI-X34CK-1

Starting at $1251.00

QCI-X34CK-1 Features

  • Continuous Torque: 490 oz-in
  • Maximum Current: 5 A
  • Maximum Speed: 2000 RPM
  • Encoder Resolution: 16000 counts/Rev

SilverMax QCI-X34CT-1

Starting at $1309.00

QCI-X34CT-1 Features

  • Continuous Torque: 540 oz-in
  • Maximum Current: 10 A
  • Maximum Speed: 2500 RPM
  • Encoder Resolution: 16000 counts/Rev

SilverMax QCI-X34CK-2

Starting at $1413.00

QCI-X34CK-2 Features

  • Continuous Torque: 1050 oz-in
  • Maximum Current: 6.5 A
  • Maximum Speed: 1500 RPM
  • Encoder Resolution: 16000 counts/Rev

SilverMax QCI-X34CT-2

Starting at $1469.00

QCI-X34CT-2 Features

  • Continuous Torque: 1048 oz-in
  • Maximum Current: 10.5 A
  • Maximum Speed: 2500 RPM
  • Encoder Resolution: 16000 counts/Rev

SilverMax QCI-X34HC-1

Starting at $1966.00

QCI-X34HC-1 Features

  • Continuous Torque: 675 oz-in
  • Peak Torque: 930 oz-in
  • Maximum Current: 13.7 A
  • Maximum Speed: 3000 RPM
  • Encoder Resolution: 16000 counts/Rev

SilverMax QCI-X34HC-2

Starting at $2183.00

QCI-X34HC-2 Features

  • Continuous Torque: 1300 oz-in
  • Peak Torque: 1650 oz-in
  • Maximum Current: 16.5 A
  • Maximum Speed: 2500 RPM
  • Encoder Resolution: 16000 counts/Rev

SilverMax QCI-X34HC-3

Starting at $2432.00

QCI-X34HC-3 Features

  • Continuous Torque: 1950 oz-in
  • Peak Torque: 2500 oz-in
  • Maximum Current: 16.0 A
  • Maximum Speed: 2000 RPM
  • Encoder Resolution: 16000 counts/Rev

SilverMax QCI-X34HC-4

Starting at $2795.00

QCI-X34HC-4 Features

  • Continuous Torque: 2550 oz-in
  • Peak Torque: 3250 oz-in
  • Maximum Current: 14.5 A
  • Maximum Speed: 1500 RPM
  • Encoder Resolution: 16000 counts/Rev
  • Power
  • Driver Input Voltage: +12VDC to +72VDC, regulated
  • Driver Input Current: 20A Max
  • Processor Input Voltage: +12VDC to +48DC, regulated
  • Communications
  • RS-485 multi-drop
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen®
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • All inputs have a light pull-up (~100k ohm to 3.3v)
  • All 7 I/O have an optional programmable pull-up/pull-down of 2.2 k ohm
  • All 7 I/O may be used as Analog Inputs: 0 to +3.3 VDC input signal range
  • IO7 has a secondary circuit to handle 0 to +10v input signal range
  • Hardware Drive Enable
  • Processor Power Backup
300x225

SilverSterling™ S2-IG-01

300x225

SilverSterling™ S2-IGH

300x225

SilverDust™ D2-IG

300x225

SilverDust™ D2-MG

300x225

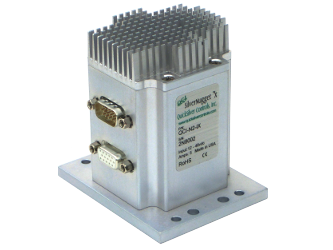

SilverNugget™ N2-IX

300x225

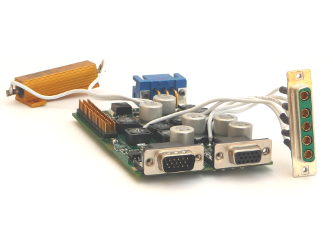

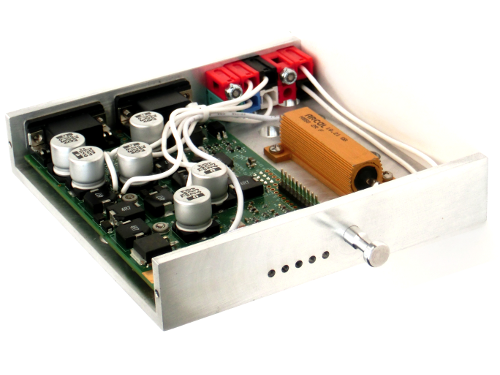

SilverSterling™ S3-IGH

300x225

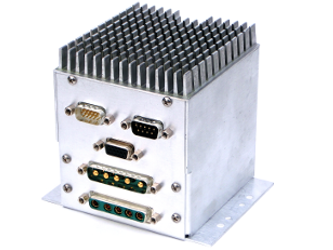

SilverNugget™ N3-IX

SilverSterling™ S2-IG Servo Controller and Driver

The SilverSterling S2-IG is an OEM servo controller/driver for QuickSilver Controls’ line of I-Grade NEMA 11, 17, 23, and 24 frame, but is also designed to drive 3rd party DC brushed and voice coil motors. The SilverSterling features a 15 pin interface connector, SilverSterling Interface Port (SIP), including 4 I/O, CAN , RS-485, and system power input (12 to 48v).

The SilverSterling S2 is an inexpensive way to add servo control to an RS-485 serial capable device such as a PC, PLC or HMI. With ASCII, binary, and Modbus protocols, serial communications is a snap.

SilverSterling S2-IG-01

Starting at $378.00

S2-IG-01 Features

  • Board Only (requires user to properly ground and heat sink motor driver)
  • Designed to Minimize Space
  • Popular with OEM’s

SilverSterling S2-IGH

Starting at $475.00

S2-IGH Features

  • Compatible Motors
  • Power
  • Input Voltage: +12 VDC to +48VDC, regulated
  • Input Current: 4.5A Max
  • Output Current: 3.5A RMS x 2 phases, 5A Peak; (6A Peak for DC motor); with adequate heat sink
  • Built-in regenerative voltage clamp and power resistor
  • Communications
  • RS-485
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen®
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 4 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • I/O#3 and I/O#4: Configurable as Analog Inputs (0 to 3.3V)
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
  • I/O#1: Capture PWM Signal for RC Control
  • SilverSterling Interface Port (SIP): DB15HD (pin)
  • Motor-Encoder Interface Port: DB15HD (socket)
  • Single Motor Cable

SilverDust™ D2-IG Servo Controller and Driver

The SilverDust D2 is an OEM servo controller/driver for QuickSilver Controls’ line of I-Grade NEMA 11, 17, 23, and 24 frame motors. The SilverDust D2 features a 15 pin interface connector, SilverLode Multiple Interface (SMI) Port, including 7 TTL IO, RS-232/RS-485, and system power input.

SilverDust D2-IG-01

Starting at $571.00

D2-IG-01 Features

  • Board Only
  • Drive Enable Input
  • Designed to Minimize Space
  • CANopen Factory Option
  • Popular with OEM’s

SilverDust D2-IG

Starting at $598.00

D2-IG Features

  • Open-Frame
  • DIN Mountable
  • Drive Enable Input
  • CANopen Factory Option
  • Popular with OEM’s

SilverDust D2-IGF

Starting at $690.00

D2-IGF Features

  • Closed-Frame (enclosure doubles as heat sink)
  • DIN Mountable (use QCI-DIN1)
  • Includes Processor Switch
  • Ideal for Standalone Systems

SilverDust D2-IGK

Starting at $728.00

D2-IGK Features

  • Closed-Frame (enclosure doubles as heat sink)
  • DIN Mountable (use QCI-DIN1)
  • Includes Processor Switch
  • CANopen
  • Ideal CANopen "slave" axis
  • Use QCI-BO-K Breakout

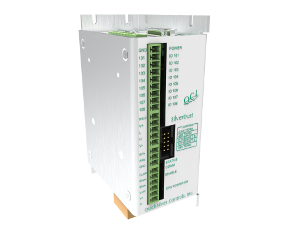

SilverDust D2-IGM

Starting at $948.00

D2-IGM Features

  • Closed-Frame (enclosure doubles as heat sink)
  • DIN Mountable (use QCI-DIN1)
  • Includes Processor Switch
  • CANopen
  • Drive Enable Input
  • 16 additional 24V I/Os
  • Pluggable Terminials Blocks
  • Ideal for Multi-Axis Applications

SilverDust D2-IGM-E

Starting at $1061.00

D2-IGM-E Features

  • Closed-Frame (enclosure doubles as heat sink)
  • DIN Mountable (use QCI-DIN1)
  • Includes Processor Switch
  • CANopen
  • Drive Enable Input
  • 16 additional 24V I/Os
  • Pluggable Terminials Blocks
  • Ideal for Multi-Axis Applications
  • Ethernet for Networking Capability
  • Power
  • Input Voltage: +12 VDC to +48VDC, regulated
  • Input Current: 4A Max
  • Output Current: 3.5A RMS x 2 phases, 4.5A Peak; with adequate heat sink
  • Built-in regenerative voltage clamp and power resistor
  • Communications
  • RS232/RS-485 (software configurable)
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512® Factory Option
  • CANopen® Factory Option
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • I/O# 4, 5, 6, 7: Configurable as Analog Inputs (0 to 3.3V)
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-B1A)
  • I/O#1: Capture PWM Signal for RC Control
  • SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)
  • Motor-Encoder Interface Port: DB15HD (socket)
  • Single Motor Cable

SilverDust™ D2-MG Servo Controller and Driver

The SilverDust D2-MG is QuickSilver Controls’ smallest servo controller. The SilverDust D2-MG is specifically designed to drive 100 poles, 1.8° step motors. To best utilize the capabilities of the D2-MG, select a motor that has been optimized for micro stepping. Its open frame design and motor winding breakout is ideal for OEMs driving a 3rd party stepper motors in either open loop (no encoder) or closed loop. The D2-MG comes standard with an SMI port, including 7 TTL IO, RS-232/RS-485, and system power input.

SilverDust D2-MG-01

Starting at $544.00

D2-MG-01 Features

  • Board Only
  • Designed to Minimize Space
  • CANopen Factory Option
  • Popular with OEM’s

SilverDust D2-MG

Starting at $573.00

D2-MG Features

  • Open-Frame
  • DIN Mountable
  • CANopen Factory Option
  • Popular with OEM’s
  • Compatible Motors
  • Support 3rd Party Stepper Motors (open-loop or closed-loop)
  • Power
  • Input Voltage: +12 VDC to +48VDC, regulated
  • Input Current: 4A Max
  • Output Current: 3.5A RMS x 2 phases, 4.5A Peak; with adequate heat sink
  • Communications
  • RS232/RS-485 (software configurable)
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512® Factory Option
  • CANopen® Factory Option
  • Inputs/Outputs
  • 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • I/O# 4, 5, 6, 7: Configurable as Analog Inputs (0 to 3.3V)
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-B1A)
  • I/O#1: Capture PWM Signal for RC Control
  • SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)
  • Supports Single-ended and Differential Encoders
  • Primary Encoder Resolution
  • 500 Lines = 2000 counts/revolution (minimum recommended resolution)
  • 1000 Lines = 4000 counts/revolution
  • 2000 Lines = 8000 counts/revolution
  • 4000 Lines = 16000 counts/revolution

SilverNugget™ N2-IX Servo Controller and Driver

The SilverNugget N2-IX is a servo controller/driver for QCI’s line of NEMA 11, 17, 23, and 24 frame, high torque, direct drive, servo motors. The N2-IX Servo Controller/Driver is designed to operate QCI’s I-Grade motors through a single motor interface cable, which carries motor power and encoder feedback. This single cable solution allows for easy installations and simple cable routing.

Power, communications, and I/O are accessed through a single DB15 high density interface connector. The interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog. A hardware drive enable is available as a factory option. All 7 I/O also have soft configurable pull-up/pull-down resistors, which may also be disabled, for more flexibility.

SilverNugget N2-IX

Starting at $769.00

N2-IX Features

  • Closed-Frame (with heat sink)
  • DIN Mountable
  • Ideal for Standalone Systems
  • Power
  • Input Voltage: +12.5VDC to +48VDC, regulated
  • Input Current: 5.5A Max
  • Output Current: 5A RMS x 2 phases
  • Communications
  • RS-485
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen® Factory Option
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 7 I/O, All 7 I/O support both LVTTL and analog signals (0 to 3.3v)
  • I/O#7: Includes circuitry for 0 to +10v analog input
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
  • Drive Enable Input Factory Option
  • Supports Secondary External Encoder
  • Output Internal Encoder Signals (Single-Ended or Differential)
  • SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)
  • Motor-Encoder Interface Port: DB15HD (socket)
  • Single Motor Cable

SilverSterling™ S3-IG Servo Controller and Driver

The SilverSterling S3 is an OEM servo controller/driver for QuickSilver Controls’ line of I-Grade NEMA 34 frame motors and is also designed to drive 3rd party DC brushed, 3rd party voice coil, and 3rd party 3 phase brushless motors. The SilverSterling features a 15 pin interface connector, SilverSterling Interface Port (SIP), including 4 I/O, CAN , RS-485, and system power input (12 to 48v).

The SilverSterling S3 is an inexpensive way to add servo control to an RS-485 serial capable device such as a PC, PLC or HMI. With ASCII, binary, and Modbus protocols, serial communications is a snap.

SilverSterling S3-IG-01

Starting at $815.00

S3-IG-01 Features

  • Board Only (requires user to properly ground and heat sink motor driver)
  • Designed to Minimize Space

SilverSterling S3-IGH

Starting at $968.00

S3-IGH Features

  • Compatible Motors
  • QCI’s NEMA 34 I-Grade Motors
  • 3rd Party Voice Coils 20A peak)
  • 3rd Party Brushed DC motors (20A peak)
  • 3rd Party 3 Phase Brushless Motors (20A peak)
  • Power
  • Input Voltage: +12 VDC to +48VDC, regulated
  • Input Current: 20A Max
  • Output Current: 10A RMS x 2 phases, 20 Amp peak; 20A Max for DC motors (using both phases in parallel); with adequate heat sink
  • Built-in regenerative voltage clamp and power resistor
  • Communications
  • RS-485
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen®
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 4 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • I/O#3 and I/O#4: Configurable as Analog Inputs (0 to 3.3V)
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
  • I/O#1: Capture PWM Signal for RC Control
  • Isolated Drive Enable Input
  • SilverSterling Interface Port (SIP): DB15HD (pin)
  • Encoder Interface Port: DB15HD (socket)
  • Motor Power Interface: DB-5W5 (socket)

SilverNugget™ N3-IX Servo Controller and Driver

The SilverNugget™ N3-IX is a servo motor controller/driver designed to operate QCI’s line of NEMA 34 frame I-Grade, high torque, direct drive, hybrid servo motors through two motor interface cables, motor power and encoder feedback. The N3-IX includes a Controller/Indexer, Digital Driver, and Active Power Clamp with internal clamp resistor. Serial communications and IO, as well as processor power are accessed through a High Density DB15 connector (SMI). CANopen is available on a separate DB 9 connector. Power and external clamp resistor are available through a 5 pin 5W5 connector.

The 15 pin SMI interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog input. A hardware drive enable are also included. Communication is available via CANopen and RS-485 serial, which may be operated simultaneously.

SilverNugget N3-IX

Starting at $1060.00

N3-IX Features

  • Closed-Frame (with heat sink)
  • Ideal for Standalone Systems
  • Compatible Motors
  • Power
  • Input Driver Voltage: +12VDC to +72VDC, regulated
  • Input Processor Voltage: +12VDC to +48VDC, regulated
  • Input Driver Current: 25A Max
  • Output Driver Current: 20A RMS x 2 phases
  • Communications
  • RS-485
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen®
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 7 I/O, All 7 I/O support both LVTTL and analog signals (0 to 3.3v)
  • I/O#7: Includes circuitry for 0 to +10v analog input
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
  • Drive Enable Input
  • Supports Secondary External Encoder
  • Output Internal Encoder Signals (Single-Ended or Differential)
  • SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)
  • Motor-Encoder Interface Port: DB15HD (socket)

NEMA 17 I-Grade Servo Motor with Encoder

The NEMA 17 motor produces up to 57 oz-in of torque. The motor includes encoder feedback with a resolution of 8000 counts/revolution. Available in IP50 and IP65.

QCI-A17-1

Starting at $409.00

QCI-A17-1 Specifications

  • Continuous Torque: 21 oz-in
  • Peak Torque: 29 oz-in
  • Maximum Current: 1.3 A
  • Maximum Speed: 2500 RPM
  • Encoder Resolution: 8000 counts/Rev

QCI-A17H-3C

Starting at $379.00

QCI-A17H-3C Specifications

  • Continuous Torque: 47 oz-in
  • Peak Torque: 72 oz-in
  • Maximum Current: 4.0 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

NEMA 23 I-Grade Servo Motor with Encoder

The NEMA 23 motor produces up to 240 oz-in of torque. The motor includes encoder feedback with a resolution of 8000 counts/revolution. Available in IP50 and IP65.

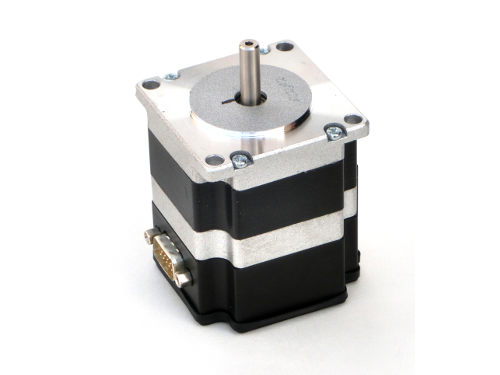

QCI-A23C-1

Starting at $312.00

QCI-A23C-1 Specifications

  • Continuous Torque: 73 oz-in
  • Peak Torque: 88 oz-in
  • Maximum Current: 4.0 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

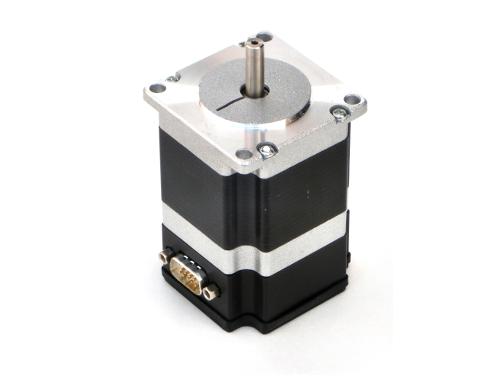

QCI-A23C-3

Starting at $342.00

QCI-A23C-3 Specifications

  • Continuous Torque: 170 oz-in
  • Peak Torque: 205 oz-in
  • Maximum Current: 4.0 A
  • Maximum Speed: 3600 RPM
  • Encoder Resolution: 8000 counts/Rev

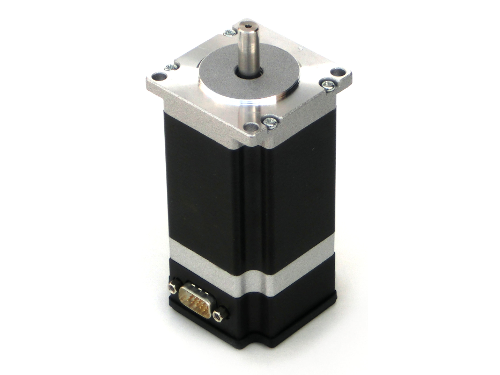

QCI-A23C-6

Starting at $387.00

QCI-A23C-6 Specifications

  • Continuous Torque: 300 oz-in
  • Peak Torque: N/A
  • Maximum Current: 4.0 A
  • Maximum Speed: 2500 RPM
  • Encoder Resolution: 8000 counts/Rev

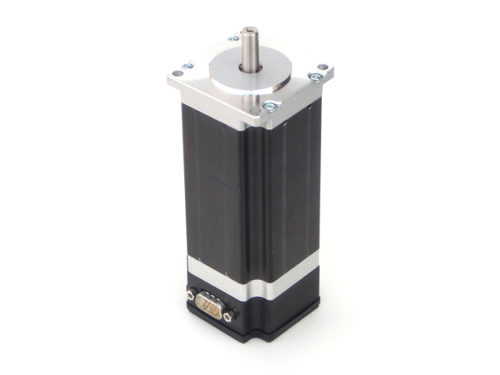

QCI-A23C-8

Starting at $413.00

QCI-A23C-8 Specifications

  • Continuous Torque: 380 oz-in
  • Peak Torque: 500 oz-in
  • Maximum Current: 4.5 A
  • Maximum Speed: 1000 RPM
  • Encoder Resolution: 8000 counts/Rev

QCI-A23L-1C

Starting at $312.00

QCI-A23L-1C Specifications

  • Continuous Torque: 44 oz-in
  • Peak Torque: 65 oz-in
  • Maximum Current: 4.0 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

QCI-A23CK-3

Starting at $328.00

QCI-A23CK-3 Specifications

  • Continuous Torque: 145 oz-in
  • Peak Torque: 185 oz-in
  • Maximum Current: 3.2 A
  • Maximum Speed: 3000 RPM
  • Encoder Resolution: 8000 counts/Rev

QCI-A23L-3C

Starting at $342.00

QCI-A23L-3C Specifications

  • Continuous Torque: 95 oz-in
  • Peak Torque: 138 oz-in
  • Maximum Current: 3.5 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

QCI-A23H-5

Starting at $448.00

QCI-A23H-5 Specifications

  • Continuous Torque: 190 oz-in
  • Peak Torque: 240 oz-in
  • Maximum Current: 4.0 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

NEMA 34 I-Grade Servo Motor with Encoder

The NEMA 34 motor is the largest frame motor we offer. Several motor stack sizes are available with torque output up to 3200 oz-in. The motor includes encoder feedback with a resolution of 16,000 counts/revolution. All motors availble in IP50, most motor sizes are available in IP65.

QCI-A34HC-1

Starting at $999.00

QCI-A34HC-1 Specifications

  • Continuous Torque: 675 oz-in
  • Peak Torque: 930 oz-in
  • Maximum Current: 13.7 A
  • Maximum Speed: 3000 RPM
  • Encoder Resolution: 16000 counts/Rev

QCI-A34HC-2

Starting at $1249.00

QCI-A34HC-2 Specifications

  • Continuous Torque: 1300 oz-in
  • Peak Torque: 1650 oz-in
  • Maximum Current: 16.5 A
  • Maximum Speed: 2500 RPM
  • Encoder Resolution: 16000 counts/Rev

QCI-A34HC-3

Starting at $1545.00

QCI-A34HC-3 Specifications

  • Continuous Torque: 1950 oz-in
  • Peak Torque: 2500 oz-in
  • Maximum Current: 16.0 A
  • Maximum Speed: 2000 RPM
  • Encoder Resolution: 16000 counts/Rev

QCI-A34HC-4

Starting at $1849.00

QCI-A34HC-4 Specifications

  • Continuous Torque: 2550 oz-in
  • Peak Torque: 3250 oz-in
  • Maximum Current: 14.5 A
  • Maximum Speed: 1500 RPM
  • Encoder Resolution: 16000 counts/Rev
  • Compatible Controllers

NEMA 17 Mosolver™ with built-in feedback sensor

The Mosolver is an innovative servo motion actuator which infuses a position feedback sensor into the very structure of a high pole count AC motor. This eliminates the need for costly encoder and resolvers. By combining the motor and resolver into a single package, the Mosolver enables a compact, inexpensive and robust closed-loop motion control. Visit the Mosolver website for more information.

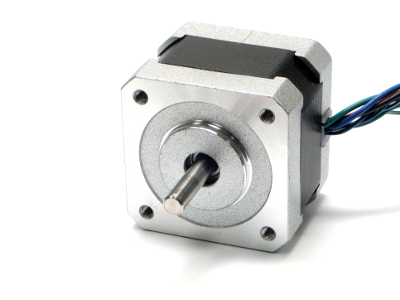

QCI-MV17C-1

Starting at $206.00

QCI-MV17C-1 Specifications

  • Continuous Torque: 30 oz-in
  • Maximum Current: 0.95A @ 48v; 1.3A @ 24v
  • Maximum Speed: 2300 RPM
  • Encoder Resolution: 32000 counts/Rev
  • Compatible Controllers

NEMA 23 Mosolver™ with built-in feedback sensor

The Mosolver is an innovative servo motion actuator which infuses a position feedback sensor into the very structure of a high pole count AC motor. This eliminates the need for costly encoder and resolvers. By combining the motor and resolver into a single package, the Mosolver enables a compact, inexpensive and robust closed-loop motion control. Visit the Mosolver website for more information.

QCI-MV23L-1

Starting at $206.00

QCI-MV23L-1 Specifications

  • Continuous Torque: 40 oz-in
  • Peak Torque: N/A
  • Maximum Current: 2.5 A
  • Maximum Speed: 3000 RPM
  • Encoder Resolution: 32000 counts/Rev
  • Compatible Controllers

Accessories - Breakout Boards

Breakout boards are a great convenience when prototyping a system as wiring is simplified. Simply plug-in the breakout board to a controller and connect any wiring via screw terminal.

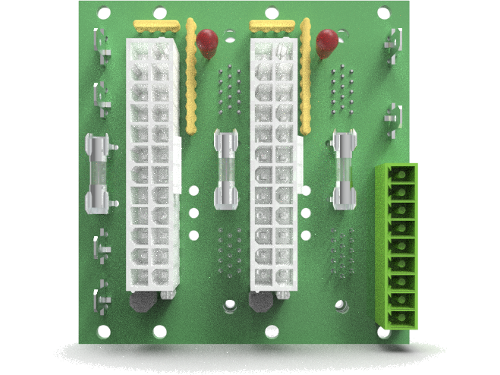

QCI-BO-BP2

Starting at $289.00

QCI-BO-BP2 Compatible With

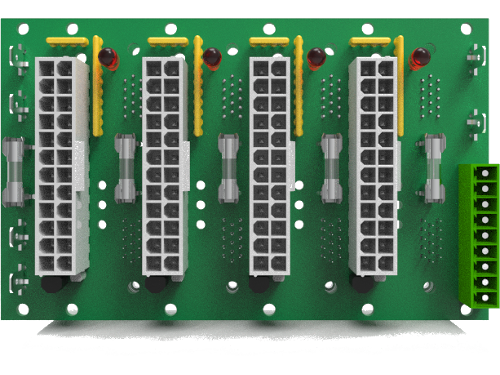

QCI-BO-BP4

Starting at $499.00

QCI-BO-BP4 Compatible With

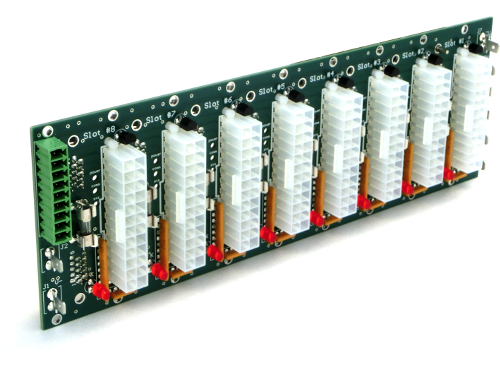

QCI-BO-BP8

Starting at $778.00

QCI-BO-BP8 Compatible With

QCI-BO-X1

Starting at $179.00

QCI-BO-X1 Compatible With

  • All SilverMax X-Series

QCI-BO-B

Starting at $45.00

QCI-BO-B Compatible With

  • All SilverDust D2's (Except IGB)

QCI-BO-B1

Starting at $43.00

QCI-BO-B1 Compatible With

  • All SilverDust D2's
  • SilverNugget N2-IX & N2-MX

QCI-BO-S1

Starting at $44.50

QCI-BO-S1 Compatible With

  • All SilverSterling S2’s
  • All SilverSterling S3’s, if drive enable is not required

QCI-BO-S3E

Starting at $44.50

Dedicated hardware drive enable input

QCI-BO-S3E Compatible With

  • SilverSterling S3-IG-01
  • SilverSterling S3-IG

QCI-BO-B1A

Starting at $68.00

Converts 0 to +3.3v PWM to 0 to +5v Analog Output on IO#2

QCI-BO-B1A Compatible With

  • All SilverDust D2’s

QCI-BO-M1

Starting at $50.75

Breakouts 15-Pin Motor Port into 5-pin motor connector and 10-pin encoder connector

QCI-BO-M1 Compatible With

  • All SilverSterling S2’s
  • All SilverDust D2’s

QCI-BO-K

Starting at $43.00

Provides onboard 120 ohm CAN termination resistor

QCI-BO-K Compatible With

  • SilverDust D2-IGK

QCI-BO-B52

Starting at $101.00

Converts 7 LVTTL IO to 5 - 24V Inputs & 2 - 24V Outputs

QCI-BO-B52 Compatible With

  • All SilverDust D2's (Except IGB)

Accessories - Communication

QuickSilver Controls offers a USB to RS-485 communications adapter. Refer to technical document QCI-TD053 Serial Communications for more information on our communication protocol.

QCI-USB-RS485A

Starting at $47.25

USB To RS-485 Converter

QCI-USB-RS485S Compatible With

  • All SilverMax X-Series Integrated Servos
  • All SilverDust D2 Controllers
  • All SilverSterling S2 and S3 Controllers
  • All SilverNugget N2-IX and N2-MX Controllers

Accessories - Clamp Modules

QuickSilver Controls offer clamp modules for applications where braking, aggressive deceleration, or high inertial loads are present.

QCI-CLCF-04

Starting at $184.50

QCI-CLCF-04

  • 20A Max
  • Requires External Power Resistor(s)
  • DIN Mountable

QCI-CLCF-04-R2

Starting at $203.00

QCI-CLCF-04-R2

  • 20A Max
  • Built-In 2 Ohm Power Resistor
  • DIN Mountable

Accessories - Power Supplies

QuickSilver Controls offer single output 48V switching power supplies.

RSP-320-48

Starting at $85.50

RSP-320-48 Specifications

  • 48V Output
  • 320W

SE-1000-48

Starting at $264.00

SE-1000-48 Specifications

  • 48V Output
  • 1000W

RSP-1000-48

Starting at $366.00

RSP-1000-48 Specifications

  • 48V Output
  • 1000W
  • Power Factor Correction
